- Eyepiece: Wide-field WF10X (φ18mm)
- Inward-facing Quadruple Nosepiece
- Binocular/Trinocular (optional), inclined at 30°
- Abbe Condenser, N.A. 1.25, Rack & pinion vertical adjustable
- 6V/20W halogen transmitted illumination with adjustable brightness

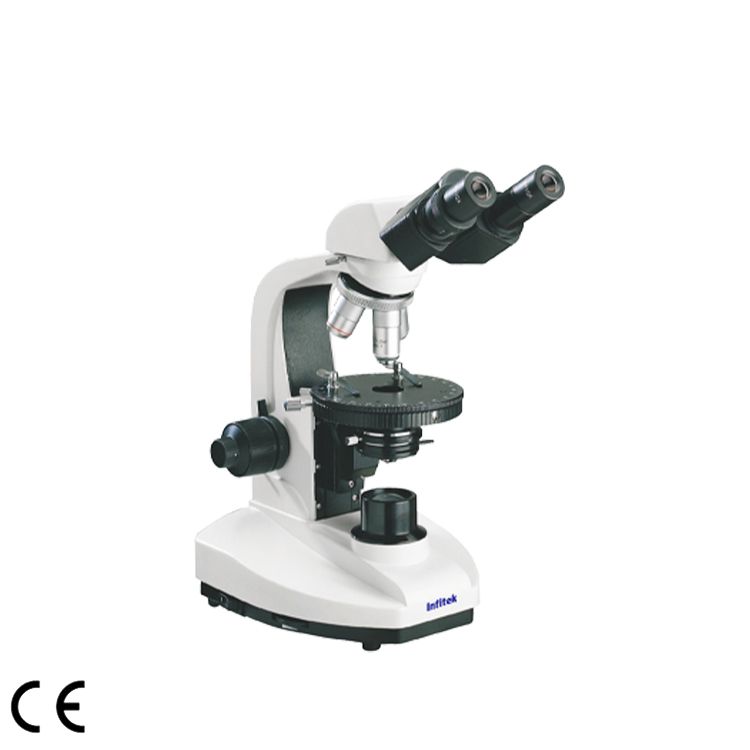

Polarizing Microscope, MSC-P20M
説明
- Equipped with wide-field eyepieces and achromatic objectives for a broad and sharp field of view.
- Coaxial coarse and fine focusing mechanism with tension adjustment and limit locking device; fine focusing graduation: 2μm.
- 6V/20W halogen transmitted illumination with adjustable brightness.
Specification
| Model | MSC-P20M |
| Eyepiece | Wide-field WF10X (φ18mm) |
| Objective | Achromatic objective 4X/0.10 |
| Achromatic objective 10X/0.25 | |
| Achromatic objective 40X/0.65 (Spring) | |
| Achromatic objective 100X/1.25 (Spring, Oil) | |
| Viewing Head | Binocular/Trinocular (optional), inclined at 30° |
| Analyzer | Sliding |
| Focusing System | Coaxial coarse and fine focusing mechanism with tension adjustment and limit locking device; fine focusing graduation: 2μm |
| Nosepiece | Inward-facing Quadruple Nosepiece; Ball-bearing positioning |
| Stage | Rotating stage (φ120mm) |
| Condenser | Abbe Condenser, N.A.1.25, Rack & pinion vertical adjustable |
| Filter | Blue filter |
| Frosted glass | |
| Polarizer | 360° rotatable |
| Collector | Applicable for halogen lamp illumination |
| Illumination | 6V 20W Halogen lamp; Adjustable brightness |
