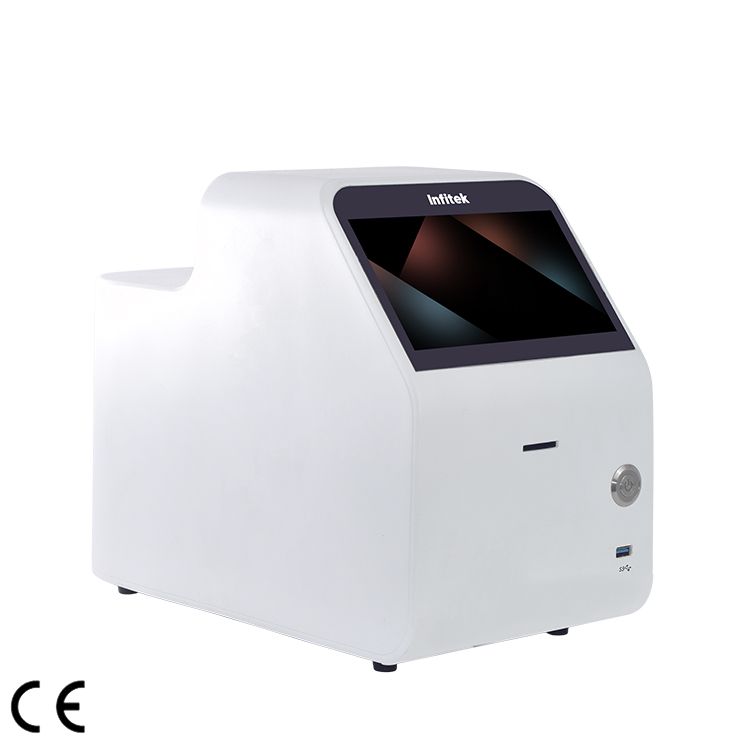

Fully Automatic High-throughput Cell Counter, FACC-Venus

Description

This product can perform high-throughput bright field and trypan blue cell counting on various cell types. It features an integrated design with a 7-inch screen. With the 6-chamber cell counting slide, it can accurately count 6 samples in a single step in just 1 minute.

Features

• Fully Automatic/Autofocus Cell Viability Analysis System

This product is a fully automated, high-throughput cell counter. It enables high-throughput brightfield and trypan blue counting for various cell types. Featuring an all-in-one design, Venus is equipped with a 7-inch display and works in conjunction with the 6-chamber cell counting slide, enabling accurate counting of six samples in a single step—taking only 1 minute. Its compact design greatly enhances space efficiency in the laboratory.

• Stable, High-Speed, High-Throughput Image Analysis Technology

The cell counter is equipped with a high-resolution, industrial-grade CMOS sensor. During the counting process, it captures multiple fields of view for each sample and automatically calculates the average. Validation results show that the counting data yields a fitted R² value greater than 0.999. Compared to traditional manual counting using a hemocytometer—which takes approximately 5 minutes to count 1 × 10⁶ cells—Venus delivers results in just 10 seconds.

• AI Algorithm

The cell counter incorporates a proprietary AI-based algorithm. Validation tests show that for the same sample, the coefficient of variation (CV) is less than 10% for single-field counting and less than 5% for multi-field counting. The algorithm has been optimized to handle challenging samples, including small-diameter cells, high-density suspensions, cell clusters, and samples containing cell debris.

• Intuitive Interactive Interface

The cell counter operates as a standalone device without the need for an external computer—ready to use upon startup. Users can freely select analysis modes and adjust settings as needed. The software provides result images along with detailed data such as concentration, viability, and diameter distribution, all of which can be viewed and exported in multiple formats to meet diverse user needs.

• Cell Counting Slide /Reusable Counting Slide

Designed for high throughput, each slide enables simultaneous counting of 6 samples. As a disposable consumable, it eliminates the need for cleaning, saving time and preventing cross-contamination. Available in 100 µm and 200 µm specifications: the 100 µm slide is ideal for high-concentration or small-diameter cells, while the 200 µm slide is suitable for a wide range of common cell types.

• Broad Cellular Applicability

We have conducted extensive validation testing across a wide range of cell types. Validated cell lines include: RAW, EG7, LNCaP, HepG2, SW480, KYSE-510, Huh-7, MCF-7, HeLa, CHO, HEK293, Jurkat, K562, PBMCs, SW620, Vero, and others.

Specifications
