- Eyepiece: Wide field WF10X /FN 22mm
- Observation Tube: Tilting trinocular, Interpupillary 53~75mm
- Inward quadruple nosepiece
- High-contrast LED fluorescence illumination
- Abbe N.A.1.25 condenser with Iris diaphragm

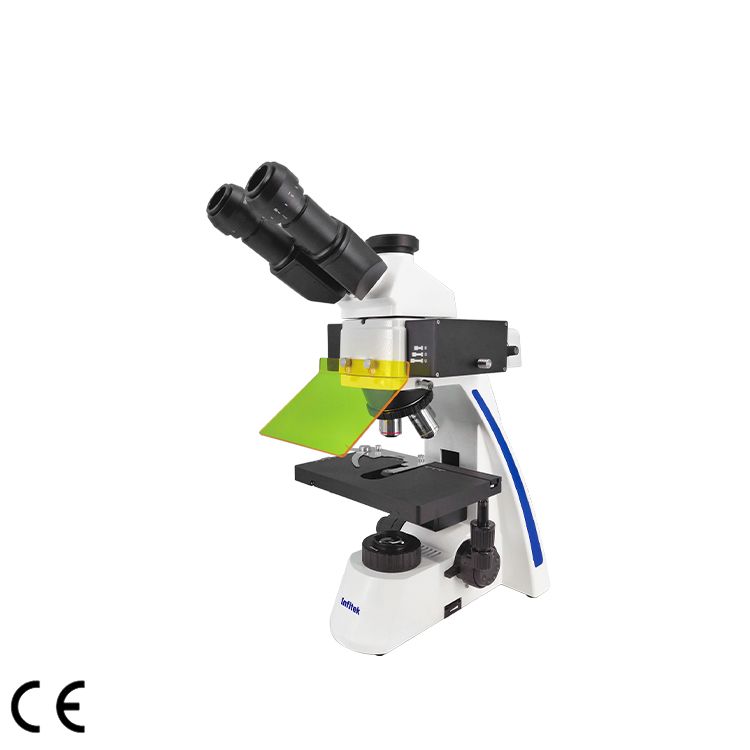

Fluorescence Microscope, MSC-F31
説明
The fluorescence microscope features an infinity optical system. Its LED excitation source delivers sharp, high-contrast fluorescence images across the entire field of view. For bright field observation, the Abbe condenser enhances specimen visibility and contrast. With good imaging and user-friendly operation, it is widely utilized in medical diagnostics, education, and biological research.
Specification
| Model | MSC-F31 |
| Optics | Infinity optical system |
| Observation Tube | Tilting trinocular, Interpupillary 53~75mm |
| Viewing Head | Siedentopf head, inclined at 30° |
| Eyepiece | Wide field WF10X /FN 22mm |
| Objectives | Infinity Plan Achromatic Objective 4X/0.1 W.D.=21.5 mm |
| Infinity Plan Achromatic Objective 10X/0.25 W.D.=7.5 mm | |
| Infinity Plan Achromatic Objective 40X/0.65 W.D.=0.65 mm | |
| Infinity Plan Achromatic Objective 100X/1.25 W.D.=0.185 mm | |
| Nosepiece | Inward quadruple nosepiece |
| Stage | Double-layer mechanical stage,
Size: 210×140mm, Moving range:76×50mm |
| Focusing | Coaxial coarse and fine adjustment, with tension and limited stopper, fine division 2μm, coarse stroke 40mm per rotation, fine stroke 0.2mm per rotation, focusing range 24mm |
| Condenser | Abbe N.A.1.25 condenser with Iris diaphragm |
| Kohler Illumination | White LED, brightness adjustable |
| Fluorescence
Illumination |
EF:420-480nm /DM:>500nm /BF: >510nm, Blue LED |
| Electricity | AC 100-240V, 50-60Hz |
| Camera Port | 0.5X C-mount adapter |
| Optional | Polarizing Attachment, Dark field Attachment, Phase Contrast Attachment |
