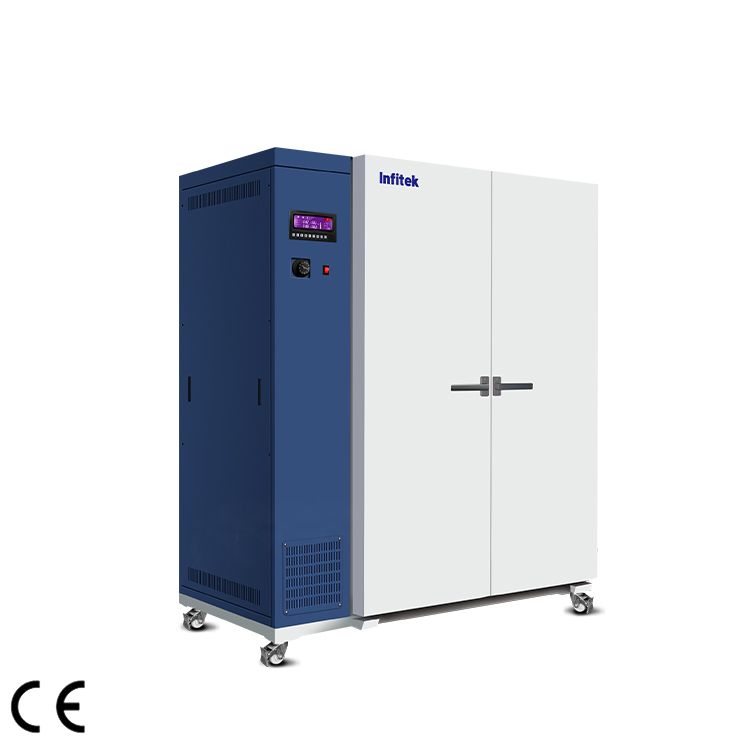

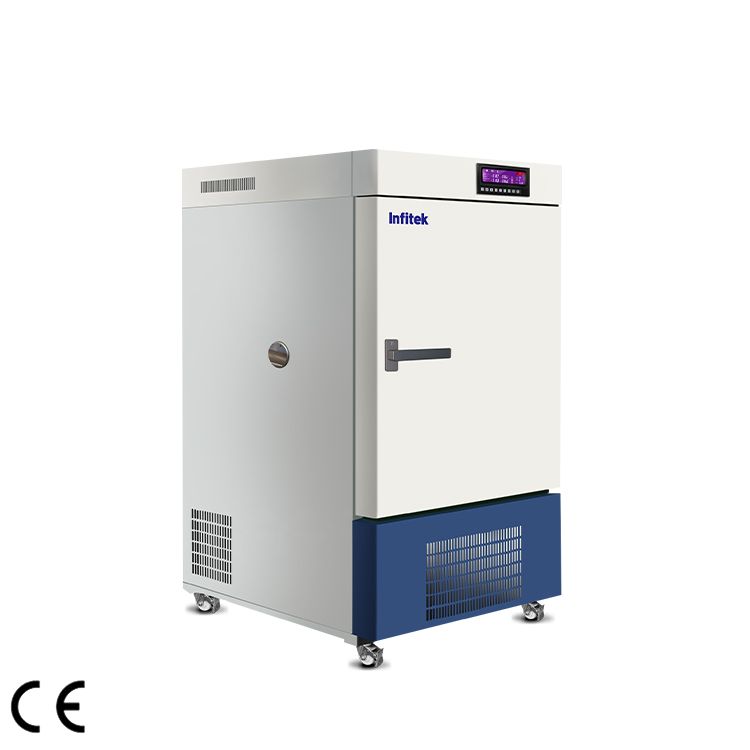

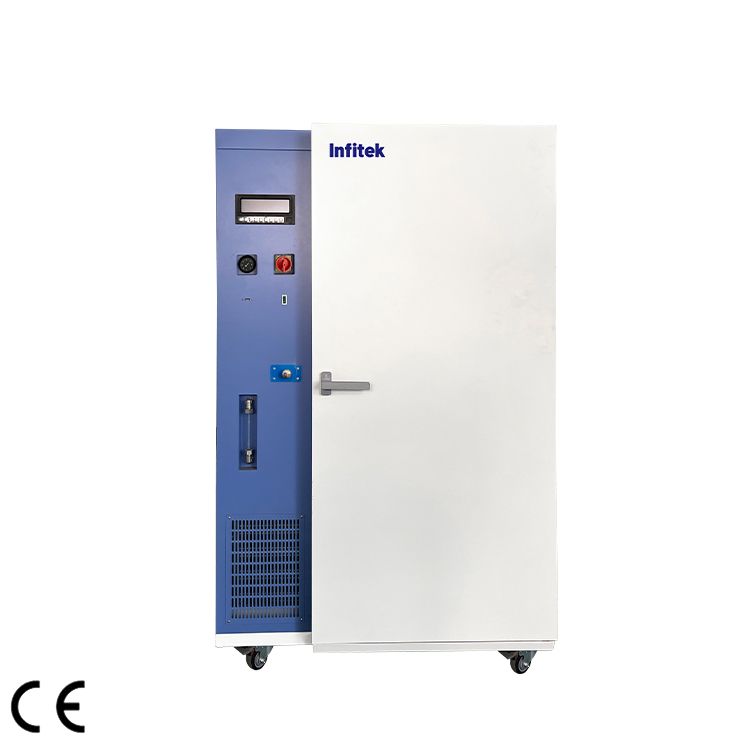

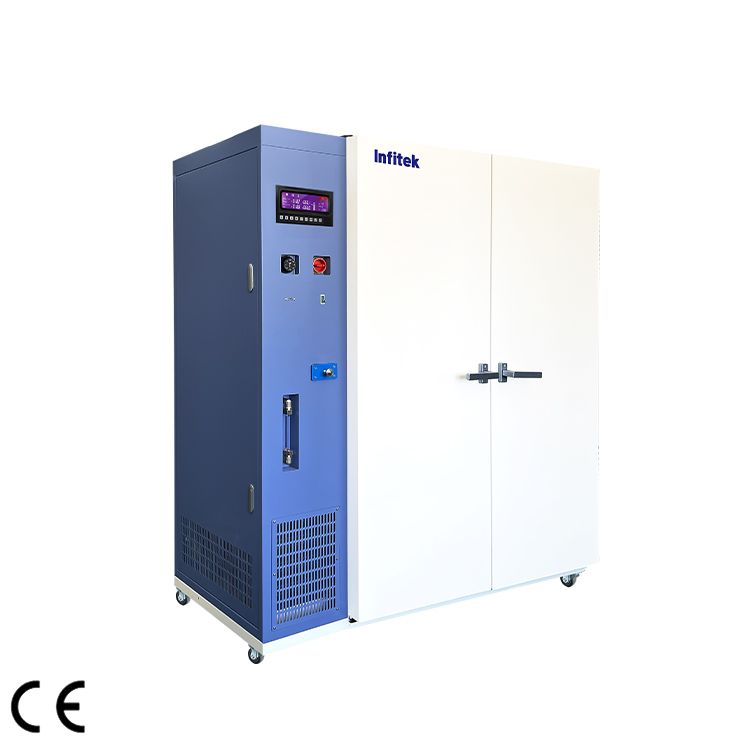

Climate Chamber, ICB-CC-YC Series

Application

The climate chamber is suitable for microbial and tissue cell culture, plant cultivation and growth, as well as the rearing of insects and small animals.

Performance Advantages

• The frost-free design effectively avoids temperature and humidity drift caused by the absence of a defrosting function, or significant fluctuations in temperature and humidity during traditional defrosting cycles. It maintains excellent temperature and humidity stability even during long-term experiments.
• The circulating fan has three adjustable speeds (high, medium, and low), providing a more stable temperature and humidity environment suitable for the growth of the culture.
• Adopts cold humidification technology suitable for plant and animal growth.
• The new diffusion-type air duct circulation system improves the uniformity of temperature and humidity.
• The refrigeration system adopts hot gas bypass energy regulation technology to ensure efficient and safe operation of the compressor under high-temperature conditions.
• The light sources on the chamber top and the shelf-type lamp holders provide vertical and layered illumination, preventing the phototropic bending of plants caused by side-wall lighting and ensuring good light uniformity. With five adjustable light intensity levels, temperature and light can simulate natural weather patterns throughout the day.
• Programmable microcomputer fuzzy PID control technology, with two modes: 30 segments and 99 cycles, or real-time operation according to Beijing time (24 hours a day).Gradient and slope control of temperature rise and fall are achieved through programming settings of parameters such as temperature and humidity, airflow speed, light intensity, running time, and heating rate.

Structural Features

• Wide-screen display: Convenient for setting programs and observing temperature, humidity, fan speed, running time, etc. It is equipped with temperature, humidity and water level alarm functions (visual indicators and audible prompts).
• Over-temperature protection system: Automatically interrupts operation when the preset temperature range is exceeded, featuring audible and visual alarms to ensure the safety of samples and the experimental environment.
• USB interface:Used to connect a printer or USB flash drive for real-time recording of temperature and humidity data during the experiment.
• Independent ventilation fan: Efficiently exhausts heat generated by the refrigeration compressor and electrical control components.
• φ40 test hole: Convenient for monitoring; equipped with a silicone soft plug to prevent air convection.
• German-style outer door handle: 90° rotating design with 4-point forced locking mechanism, ensures superior sealing, prevents air leakage, and enhances thermal insulation performance.
• Outer casing: Made of high-quality cold-rolled steel plate with powder coating technology, with uniform thickness and a simple and beautiful appearance.
• Shelves: Made of SUS304 stainless steel;The shelf height is adjustable to meet specific requirements.
• Shelf-type lamp holder: High layered illumination uniformity with vertical lighting that is ideal for plant growth; equipped with plant growth lamps featuring a complete spectral range.
• Square steel base: Constructed from integrally welded rectangular square steel for high strength and durability, ensuring stability without vibration.
• Universal casters: Can be freely turned and locked; made of wear-resistant polyurethane.

Specification
