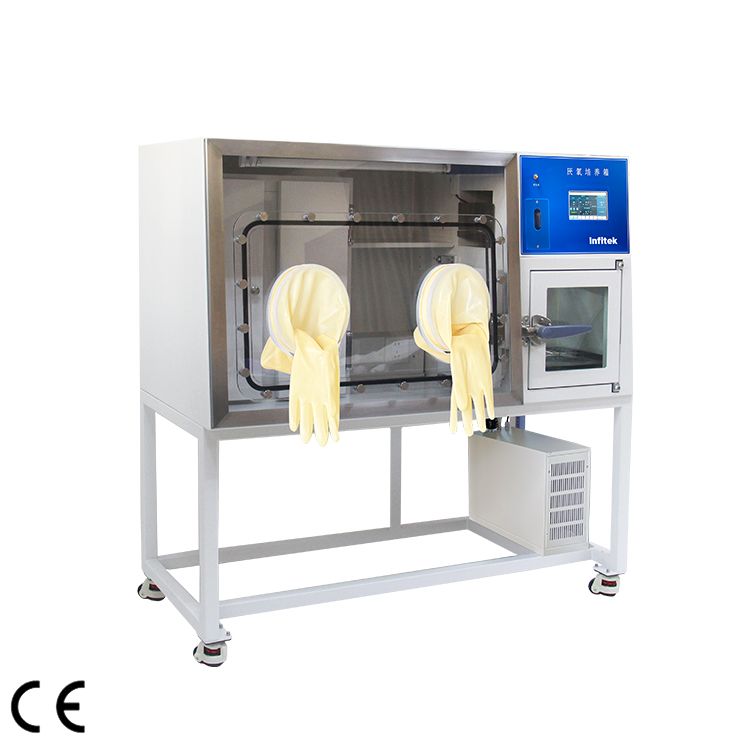

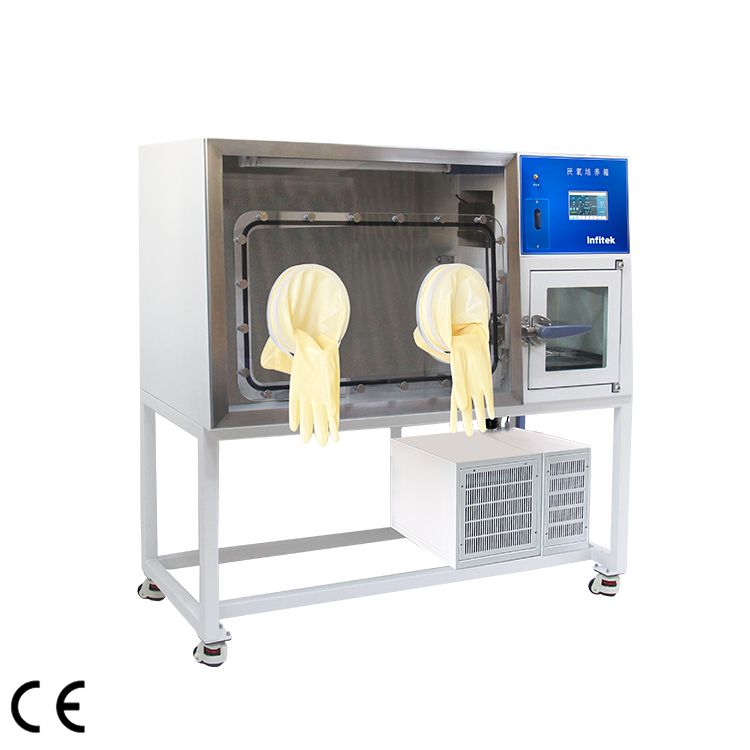

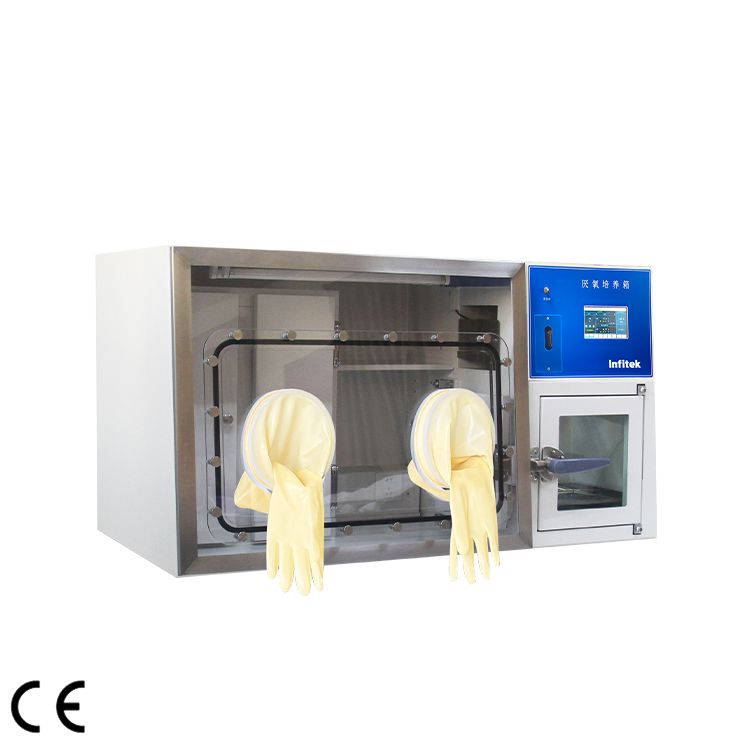

Anaerobic Incubator, ICB-AN-T Series

Application

The anaerobic incubator is a specialized device for bacterial culture and operation under anaerobic conditions. It provides a strict anaerobic environment, constant temperature incubation conditions, and a systematic, scientific workspace. It is applied in the testing and research of pathogenic anaerobic bacteria, microbiological inspection for food hygiene, and other fields requiring hypoxic, microaerobic, and anaerobic experimental conditions.

Features

• It consists of a constant temperature incubator, anaerobic operation chamber, sampling chamber, gas and circuit control systems, cabinet stand, bottle rack, and wax melting
• By using different components of mixed gases, it can create stable extreme anaerobic, microaerophilic, and low-oxygen environments, flexibly cultivating different microbial culture conditions.
• High-impedance motor cross-flow fan with horizontal air outlet and arc-shaped circulation design; features power-balanced temperature regulation and a self-protecting heater. This ensures superior temperature uniformity and minimal fluctuation.
• Microcomputer fuzzy P.I.D temperature controller with automatic gas displacement procedures provides precise control to meet diverse temperature requirements.
• 7” TFT 65K color touch screen provides high-definition display of parameters (temperature, oxygen concentration, pressure, etc.), making it intuitive and easy to operate.
• One-touch automatic execution for establishing anaerobic environments in both the sampling and operation chambers, significantly reducing labor and time costs.
• Features a safety monitoring function; users can set temperature protection limits. In case of abnormalities, power to functional components is automatically disconnected and an alarm is triggered.
• The chamber is equipped with a UV germicidal lamp.
• The inner chamber is made of SUS304 stainless steel, which is wear-resistant, prevents powder shedding, and has a smooth surface for easy cleaning.
• Front windows of the operation and sampling chambers are made of impact-resistant special transparent glass, offering excellent light transmission and pressure resistance. Dedicated gloves are used for flexible and comfortable operation.
• Equipped with a specialized inoculating loop sterilizer, wax melting disinfection device, and deoxygenation catalyst inside the operation chamber.
• Uses the preset oxygen concentration as the control parameter, eliminating the need for constant mixed gas replenishment and significantly reducing gas consumption.
• Utilizes an oil-free vacuum pump to ensure no oil vapor is generated during operation.
• The spacious sampling chamber allows for the transfer of more Petri dishes or instruments at once, with a sliding track for easier transport. The operation chamber baseplate is removable to accommodate larger instruments and facilitate cleaning.
• Standard USB data logging port for easy recording and storage of experimental data; supports automatic USB firmware updates for the control program.
• Standard equipment includes two sets of 0.22μm replaceable HEPA filters: Set A removes trace impurities from injected gases; Set B removes harmful microorganisms and odors from exhaust gases. (Recommended replacement interval is 3-6 months depending on usage.)
• (Optional) Independent external temperature protection device.

Specifications

Note:

• The external height (H) includes 8cm accessories.
• Customers are required to provide their own experimental gas cylinders, gases, pressure reducing valves, and catalysts.
